Single-Sided PCB for Battery Contacts (FB Series)

     **NOTE**

  • Snaptron recommends that the circuit area under the dome be void of solder mask.  The keep out area begins at the outside edge of the outer circuit pad that the dome is positioned on.

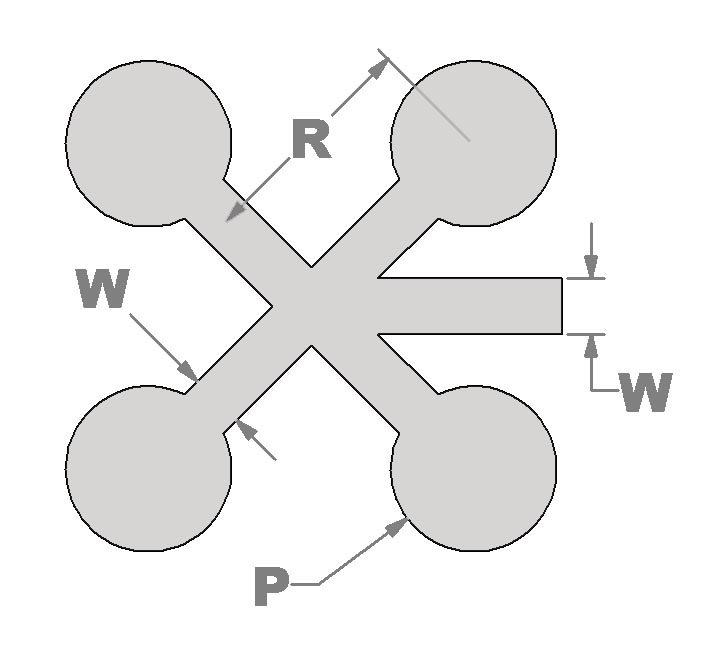

This drawing represents one of many possible layouts. Snaptron conveys this information for customer support with the intent that the customer will be responsible for final design of P.C.B. layout.

Diameter W P R
6mm 0.89 1.25 2.69
7mm 0.89 1.25 3.15
12mm 1.27 3.81 5.28
