Mechanical Switches: Why Metal Domes Stand Out

Read time: 8 minutes

Designing reliable, responsive user interfaces starts with understanding the components that make them work. To begin, from medical instruments to industrial controls, one element often defines how a product feels and performs—the mechanical switch.

Also known as mechanical buttons, these switches form the backbone of countless devices that rely on tactile feedback, precision, and long-term durability. With that in mind, what exactly makes a switch “mechanical,” and why might engineers choose a metal dome switch as part of their design?

In the following sections, we’ll explore what mechanical switches are, how they work, and how dome switch technology offers a modern approach to mechanical button design.

What Is a Mechanical Switch?

A mechanical switch is a physical, electromechanical component that uses moving parts to open or close an electrical circuit. When a user presses the switch, a conductive element inside moves to bridge the circuit, allowing current to flow. Releasing the switch breaks the connection, turning the circuit off again.

By contrast, mechanical switches differ from capacitive or membrane switches because they rely on tangible motion and physical contact rather than touch or proximity. This makes them highly reliable and predictable—essential characteristics in critical-use products such as medical devices, defense systems, and industrial equipment.

How Do Mechanical Buttons Work?

A mechanical button or switch operates through a simple motion: press, connect, release. However, inside that motion lies precise engineering.

For example, in a tactile dome-based design, the metal dome acts as the spring mechanism. When pressed, the dome collapses and makes contact with conductive traces on a printed circuit board (PCB). Once released, the dome returns to its original shape, ready for the next actuation.

Core Components of a Mechanical Dome Switch Design:

• Overlay or actuator: The user-facing interface that transmits force to the dome.
• Adhesive carrier: Holds the domes in alignment and protects them from contamination.
• Metal dome: Usually stainless steel, designed for durability and tactile response.
• Circuit layer: A PCB or flexible circuit that provides electrical contact points.

This mechanical structure creates a momentary normally-open switch, meaning the circuit is only active while pressed, a design favored in keypads, handheld devices, and control panels.

Types of Mechanical Switches

First, mechanical switches come in several key types, each designed to provide a specific actuation profile and tactile experience. By understanding these differences, engineers can select the right switch architecture for a given use case.

1. Linear Switches

In contrast, linear switches move straight up and down without any tactile bump or audible click.

• Feel: Smooth, consistent travel.
• Use Case: Ideal for fast, repeated actuations where precision matters more than feedback, such as instrumentation panels or mechanical keyboards.
• Example: Cherry MX Red—a benchmark for low-friction linear travel.

2. Tactile Switches

In particular, tactile switches include a discernible bump at the actuation point, offering feedback without an audible click.

• Feel: Noticeable mid-travel resistance that confirms activation.
• Use Case: Common in medical diagnostic equipment, automotive dashboards, and handheld electronics, where users need tactile confirmation without added noise.
• Example: Snaptron F-Series—known for its balanced tactile response.

3. Clicky Switches

Clicky switches deliver both tactile and audible feedback.

• Feel: A tactile bump accompanied by a sharp “click” sound.
• Use Case: Ideal for environments where audible confirmation improves usability, such as data entry terminals or specialized control systems.
• Example: Gateron Melodic—favored for its distinctive tactile and sound profile.

From an engineering perspective, all three switch types rely on a spring-loaded mechanism or contact dome to define force-displacement characteristics, metrics that influence ergonomics, actuation speed, and product life cycle.

Inside the Housing: How Switch Design Impacts Performance

Beyond the switch type, the housing and internal components determine durability, tactile quality, and environmental resistance.

Key housing elements:

• Top and bottom housing: Enclose and protect the internal mechanism. Materials range from polycarbonate to glass-filled nylon, each offering trade-offs in stiffness, chemical resistance, and cost.
• Stem or plunger: Translates the user’s press into movement; its geometry affects wobble and stability.
• Spring or dome: Defines the actuation force curve, return force, and tactile profile.
• Contacts: The conductive interface that completes the electrical signal; typically gold-plated for longevity and corrosion resistance.

Switch housing is also where mechanical switch design diverges sharply from dome switches. On one hand, traditional mechanical switches use discrete housings and spring assemblies. On the other hand, metal domes achieve similar functionality in a fraction of the space, making them ideal for low-profile, sealed, or space-constrained applications.

Advantages of Mechanical Switches

Mechanical switches have remained popular for decades because they provide consistent, repeatable performance and a familiar, satisfying tactile feel. Engineers rely on them for:

1. Tactile Feedback

The distinctive “snap” of a dome or spring-loaded mechanism gives the user clear confirmation that an input has been registered — critical in safety- or precision-driven applications.

2. Durability

High-quality mechanical switches can endure millions of actuations without performance degradation. Snaptron’s metal domes, for example, are rated for up to 5–10 million cycles, depending on size and force.

3. Customizability

Mechanical switches can be fine-tuned for actuation force, travel distance, and feel. Engineers can design domes with specific tactile ratios to achieve the desired feedback for any user interface.

4. Environmental Reliability

Unlike their capacitive counterparts, mechanical buttons continue to function in wet, dusty, or gloved environments — making them ideal for industrial, outdoor, or medical applications.

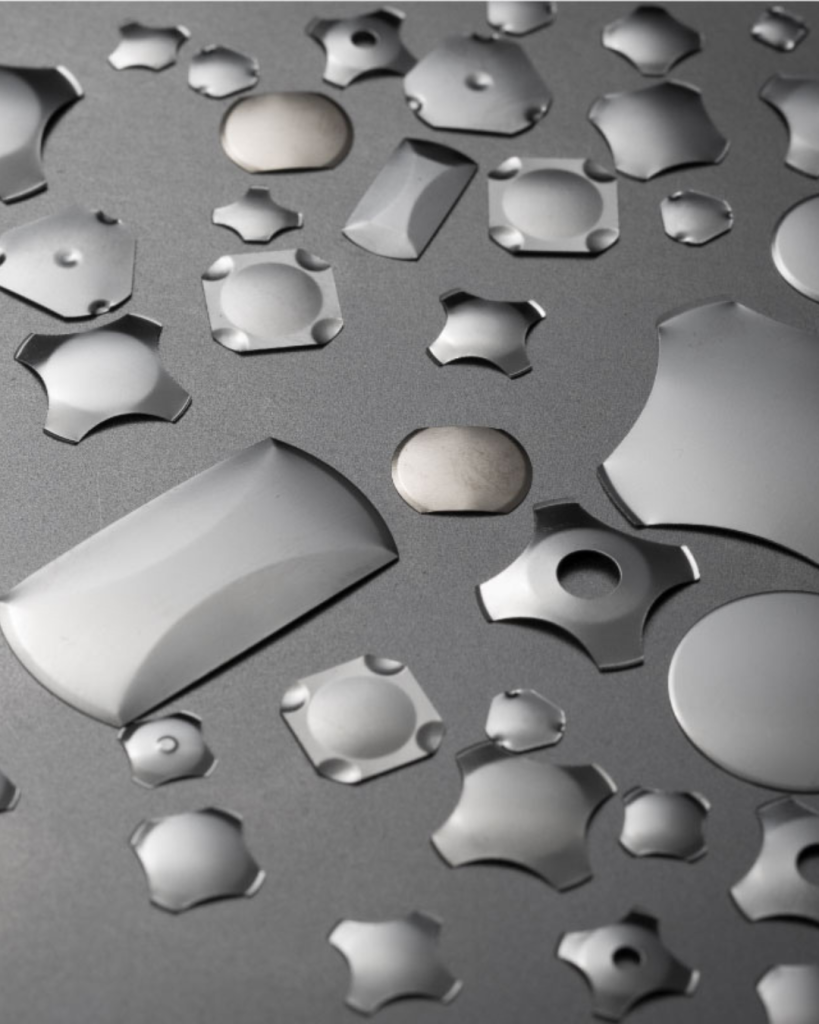

Metal Dome Switches: The Compact Mechanical Alternative

A metal dome switch is a mechanical switch that uses a thin, preformed stainless-steel dome as the actuation element. Specifically, when pressed, the dome collapses and makes contact with a conductive pad beneath it—creating a closed circuit. Then, once released, the dome returns to its original shape.

As a result, this simple yet robust mechanism provides the mechanical tactility of a traditional switch with a lower profile, higher durability, and simpler assembly.

Key benefits of dome switches include:

• Tactile feedback: Crisp, repeatable response with customizable actuation force (from ~180g to 700g).
• Longevity: Many domes exceed 5 million actuations, outperforming standard mechanical keys in compact applications.
• Low profile: Perfect for space-limited interfaces like handheld controls, wearable devices, and sealed medical instruments.
• Reliability: Stainless steel resists fatigue, corrosion, and environmental stress, critical for mission-critical applications.

In summary, dome switches provide mechanical precision without mechanical bulk.

Dome Switch vs. Membrane Switch: Side-by-Side Comparison

Specifically, for engineers designing compact or sealed products, dome switches offer a mechanical advantage: lower cost, smaller footprint, and excellent tactile precision, all without complex assembly.

Design Tips for Engineers

1. Define tactile force early. Determine your target actuation force (e.g., 250g for handheld medical devices or 500g for industrial controllers).
2. Evaluate travel and snap ratio. Dome geometry determines tactile “feel.” A higher snap ratio provides sharper feedback.
3. Match plating to longevity. Use hard gold or nickel PCB plating for applications exceeding one million cycles.
4. Consider environmental sealing. Polyester overlays, gaskets, or adhesives can protect domes in outdoor or sterile environments.
5. Test early with real data. Tools like the Snaptron Sapphire Switch Tester allow engineers to visualize force-displacement curves and verify actuation consistency before production.

When to Choose Metal Dome Switches Over Traditional Mechanical Switches

You should consider metal domes when your design requires:

• A low-profile interface (e.g., handheld or wearable electronics)
• Sealed enclosures against dust, fluid, or contaminants
• High durability under repeated use
• Precise, consistent tactile response across thousands or millions of actuations

Consequently, in these cases, dome switches can outperform traditional mechanical buttons in both performance and manufacturability.

Final Thoughts

Mechanical switches and dome switches both play essential roles in modern interface design. For example, while spring-based mechanical switches dominate consumer keyboards, metal dome switches provide a smarter solution for engineers who need reliability, tactility, and a compact form factor.

By understanding the mechanical principles behind each switch type and leveraging proper testing, materials, and dome geometry, engineers can design products that not only last longer but also feel better to use. Need help designing your next mechanical interface? If you’re ready to take the next step, contact Snaptron’s engineering team to discuss your application or request custom dome samples for testing.
