Start Prototyping with a Box of Metal Dome Switch Samples

See for yourself why engineers turn to Snaptron’s metal dome switches for their unique electronic applications.

Fine-tune the feedback, performance, and user experience of your product designs before you scale to production. Start by prototyping with metal dome switch samples first.

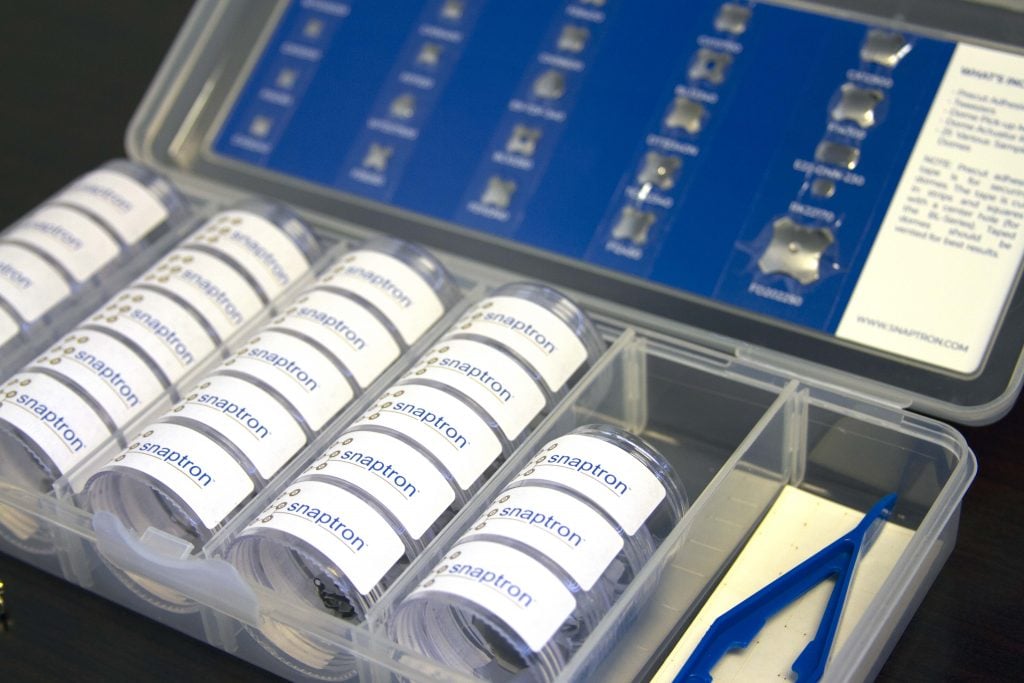

What’s Included in a Sample Box?

25 different types of domes in various styles, sizes, and trip forces
Design guide
Demo board
Placement tools
Precut adhesive tape

Please fill out the form, and a member of our team will be in touch shortly. Are you looking for samples for a specific part? Please indicate that in the comments field.

Comments
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Email*
Company*
Job Title*
Phone*
Address*
Street Address City State / Province / Region ZIP / Postal Code Country
How did you hear about us?*
Comments
Consent*
By clicking this box, I agree to receive communications about news, products and offerings from Snaptron **
CAPTCHA

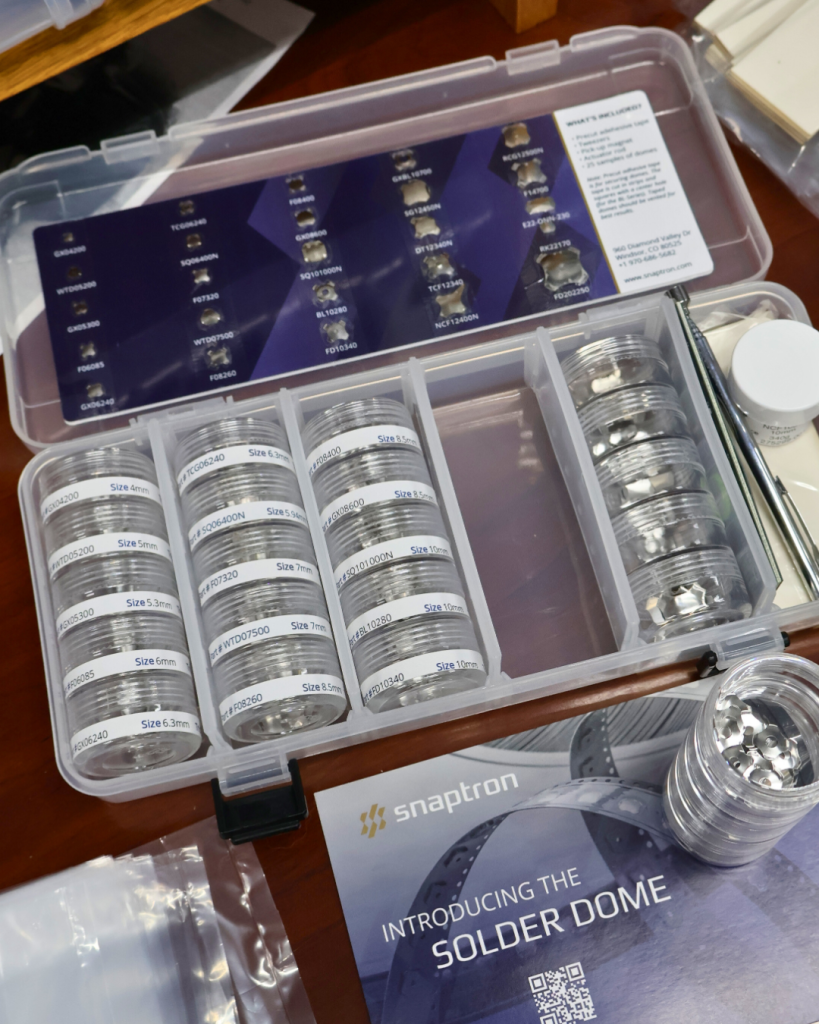

Note: Standard sample kits include the following domes: GX04200, WTD05200, GX05300, F06085, GX06240, TCG06240, SQ06400N, F07320, WTD07500, F08260, F08400, GX08600, SQ101000N, BL10280, FD10340, GXBL10700, SG12450N, DT12340N, TCF12340, NCF12400N, RCG12500N, F14700, E22-ONN-230, RK22170, and FD202250. Shipping charges may apply. View our Terms and Conditions for more information

Frequently Asked Questions About Our Sample Box

Are the samples really free?

Yes. Snaptron provides free sample kits to help engineers evaluate tactile feedback, switch performance, and dome compatibility before moving into production. Shipping and handling charges may apply depending on location and shipping method.

What types of applications are these samples used for?

Snaptron metal dome samples are commonly used in membrane switches, PCB assemblies, medical devices, automotive interfaces, industrial controls, wearable products, and consumer electronics, where tactile feedback and long-term reliability are important.

Why should engineers prototype with physical metal dome samples?

Small changes in dome geometry, overlay thickness, PCB layout, adhesive selection, and actuator design can significantly impact tactile feel and switch performance. Testing physical samples helps reduce design risk, improve user experience, and validate performance before you begin production.

What dome styles are included in the sample kit?

The sample kit includes a variety of dome styles, including four-leg, triangle, round, square, SMT, and backlit-compatible dome options across multiple force ranges and diameters.

Can Snaptron help me choose the right dome for my application?

Yes. Snaptron’s engineering team can help recommend dome sizes, actuation forces, tactile ratios, adhesive options, and PCB layouts based on your specific application requirements and performance goals.

Are the sample domes suitable for PCB testing?

Yes. The sample kits are specifically designed to support PCB testing, tactile evaluation, overlay validation, and early-stage prototyping.

Does Snaptron manufacture custom metal domes?

Yes. In addition to the standard in-stock dome options you see in the kit, Snaptron also manufactures custom tactile dome switches tailored to your unique force, geometry, size, and environmental requirements.
