TACTILE METAL DOME SAMPLES!

Need snap dome samples for your prototypes? Request
samples/information any of the following ways:

Tactile metal dome sample box / designer’s kit

Select samples of specific part number(s)

Request a catalog and/or design guide

Contact the Snaptron sales department

Snaptron, Inc.

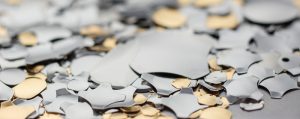

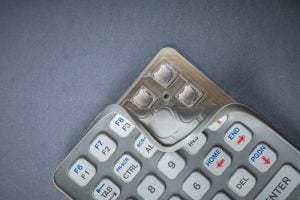

Our tactile domes are momentary switch contacts that, when used in conjunction with a printed circuit board, flex circuit, or membrane, become normally open tactile switches.  Tactile domes are placed onto the substrate with pressure sensitive adhesive tape (Peel-N-Place Array) or captured in a membrane-type pocket design.

For over 20 years Snaptron has been the industry leader in providing high quality tactile metal switch contacts (snap domes) and complimentary equipment for a wide variety of industries.  Our customer service and breadth of product (variety of dome styles, sizes, and forces available) are second to none.

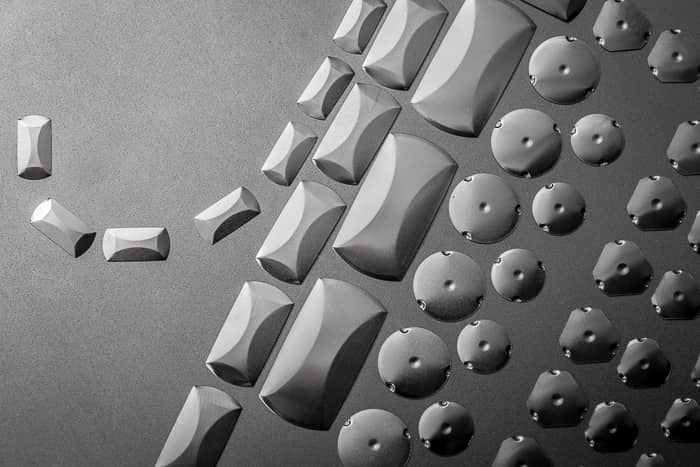

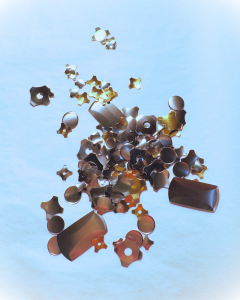

Snaptron carries over 10 different standard dome styles, with sizes ranging from 4mm to 25mm.  Custom tactile domes can also be created with minimal lead times.

Featured Product

SQ-Series Dome

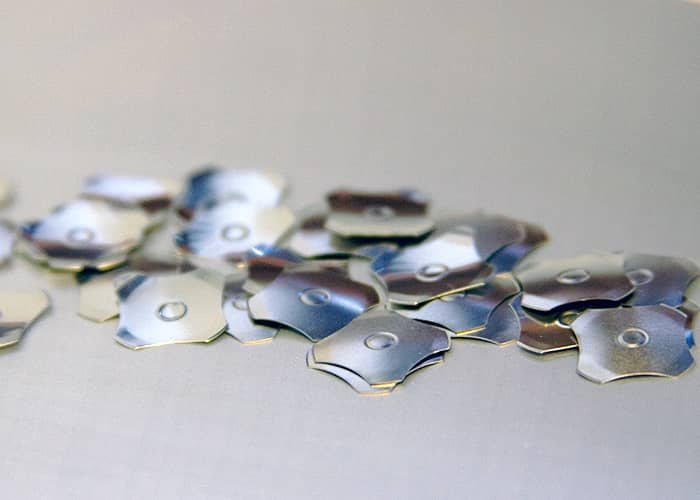

SQ-Series domes were developed in 2014 using Snaptron’s proprietary manufacturing processes.  This dome is more square in shape than previous 4-leg domes which allows it to maintain robust features including a life cycle specification of 10,000,000 cycles.  It also features the ability to incorporate higher forces without affecting its life cycle rating (which can diminish with other styles of domes).  In addition, the SQ04200N is 4mm in diameter (3.3mm side measurement) making it one of the smallest micro-domes on the market today.

Peel-N-Place Dome Arrays

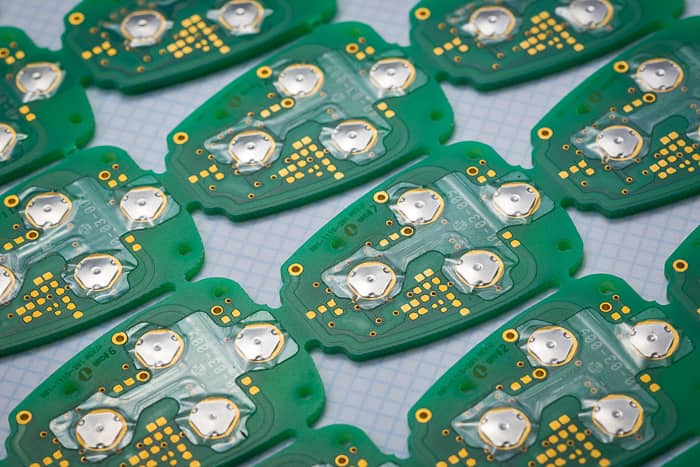

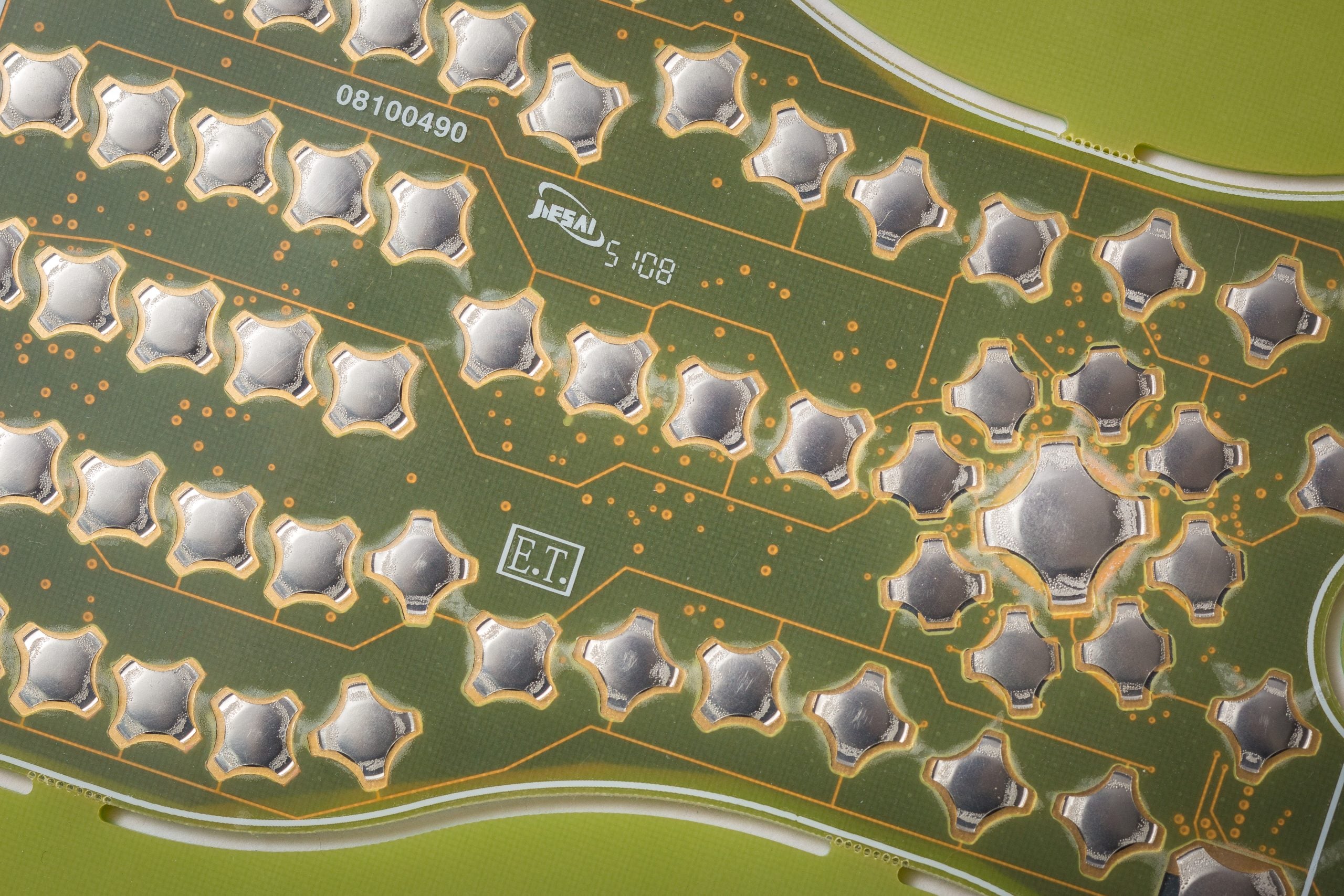

Snaptron tactile metal domes are often placed onto a printed circuit board or flex circuit using a pressure sensitive adhesive tape – referred to as Snaptron’s Peel-N-Place dome arrays.

Two options for Peel-N-Place Arrays:

Standard – A single dome on a square piece of adhesive tape (packaged in sheet form)

Custom – Multiple domes placed in the exact locations you require (including cuts for “keep out” areas.  Send Snaptron a PNP drawing.

From the Blog

The Leader in Quality

Snaptron’s quality management system is certified to ISO 9001:2008 and all of our products are manufactured to strict specifications.  The majority of our tactile domes are rated up to 5 million cycles.  For over 20 years, Snaptron tactile metal domes have earned the confidence of design engineers looking for controlled and consistent tactile feel.

Serving Your Industry

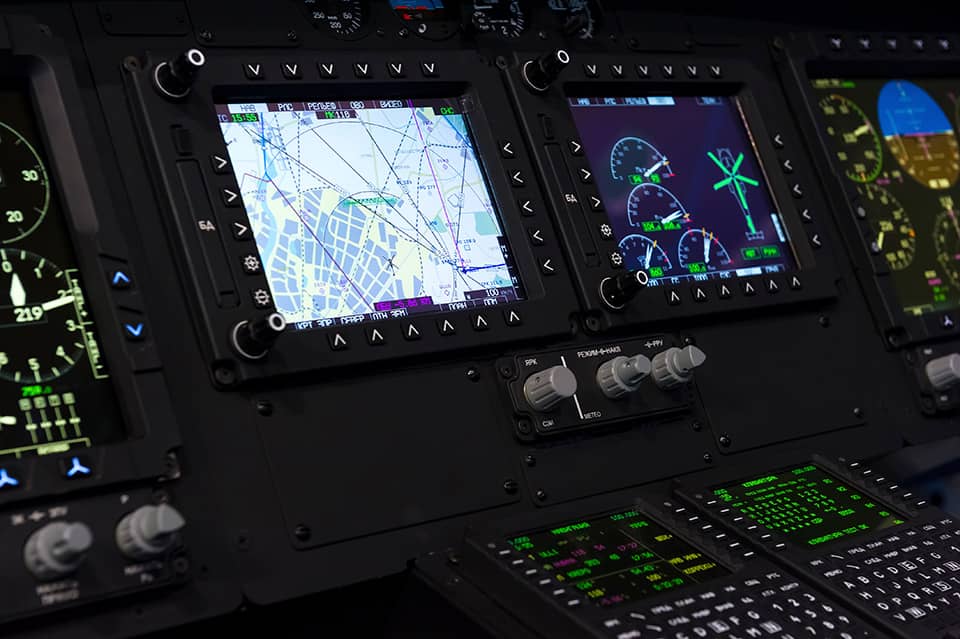

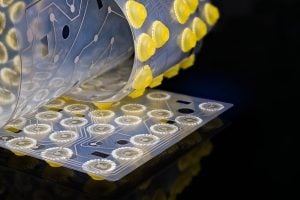

Metal domes add a distinguished tactile feel to products in a wide variety of industries, including medical instrumentation, automotive switches, aerospace cockpit panels, wireless handheld devices, marine controls, smart card applications, membrane panels, security & military devices, mobile communications, and anywhere else a low-profile momentary switch is required.  For a look at a few industries we serve, select the link(s) below.

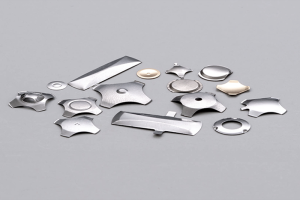

Custom Capabilities

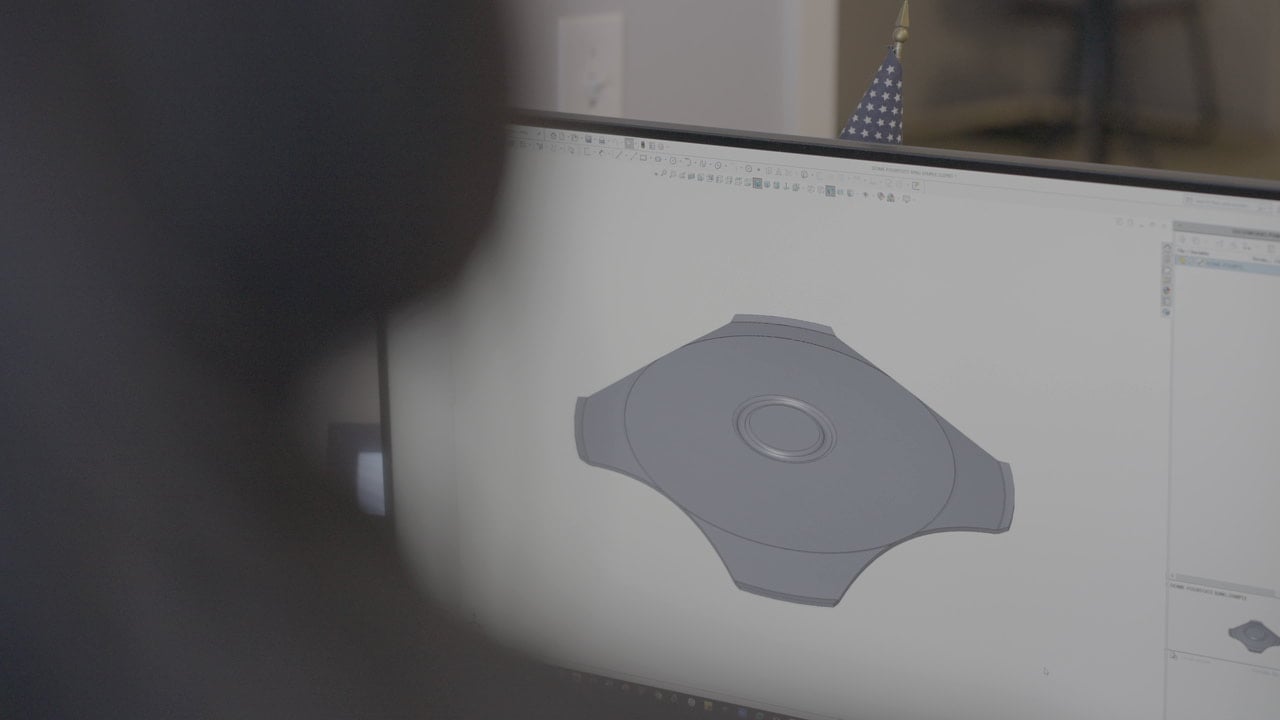

Every project is different and Snaptron has the in-house capabilities to create custom domes specific for your product.  Whether you require a minor adjustment to an existing tactile dome [e.g. tactile trip force, snap action feel (tactile ratio), dome height/travel], or a completely new design concept, Snaptron has the expertise to accommodate.  Optional gold and nickel plating is also available.

Around the Globe

Snaptron products are manufactured in Colorado, USA and shipped worldwide.  Our technical and sales staff have experience assisting clients in the North America, Europe, Asia, and locations around the globe.  In order to maintain our strict quality standards, we do not use distributors.  We ship our products direct to you.  Contact us to learn more about our tactile metal domes, Peel-N-Place dome arrays, dome placement equipment, and force-displacement testing products. We look forward to hearing directly from you!
