RCG-Series Tactile Domes
The RCG dome is a four-legged dome with a unique ring feature pressed into the top. The unique design, of the RCG dome, offers certain advantages over traditional snap domes.
The RCG tactile dome provides a circular contact surface area which helps reduce impact from contamination, debris, or off-centered actuation. Unlike other switch options, the RCG dome has a lower profile and higher life cycle rating. Depending on the circuit board design, the ring feature can also activate multiple independent contacts simultaneously.

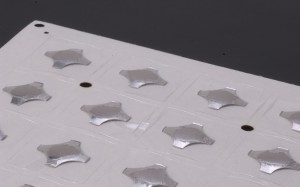

RCG-Series tactile domes can be purchased in bulk (loose in jars) or as part of a custom Peel-N-Place Array (mounted on adhesive tape). RCG snap domes can be mounted to a wide variety of switching surfaces, including single or double-sided printed circuit boards, flex circuits, and membrane switch panels. We can also provide the RCG domes in pocketed reel or in cartridges for use with the Dart™ Dome Placement Pen or SureShot™ Automated Placement Machine.
Note: The RCG-Series comes standard in nickel plating.
|Part Number||Diameter||Height||Trip Force||Dimple||Life Cycles||Specs||Request Samples|
|RCG05200N||5.3mm (0.210")||0.33mm (0.013")||200g||No||up to 5,000,000||Specs||Add to List|
|RCG06240N||6.3mm (0.250")||0.36mm (0.014")||240g||No||up to 5,000,000||Specs||Add to List|
|RCG07340N||7.0mm (0.276")||0.41mm (0.016")||340g||No||up to 5,000,000||Specs||Add to List|
|RCG08400N||8.5mm (0.334")||0.53mm (0.021")||400g||No||up to 5,000,000||Specs||Add to List|
|RCG10450N||10.0mm (0.390")||0.51mm (0.020")||450g||No||up to 5,000,000||Specs||Add to List|
|RCG12500N||12.0mm (0.468")||0.63mm (0.025")||500g||No||up to 5,000,000||Specs||Add to List|
